Sliding flat top

The PRR sliding flat top is particularly appreciated because of its small loading angle, ideal for every type of equipment, even with a small ground clearance.
This flat top is based on a tandem axle and we propose sizes and payloads adapted to every type of use.

In addition to its technical properties, this flat top ensures the hydraulic sliding of the bed and comes with a rear ramp and extra low wheels.
This “sliding flat top” range comes with many different options (fold-down and removable sides, cage sides, adjustable parallelogram hitching…).

The possible alternatives for this sliding top trailer, depending on your use, can include: large tipper trailer or very large tipper trailer or large tipper bed or the very large tipper flat top.

Designed and made in France
Informations Contact us

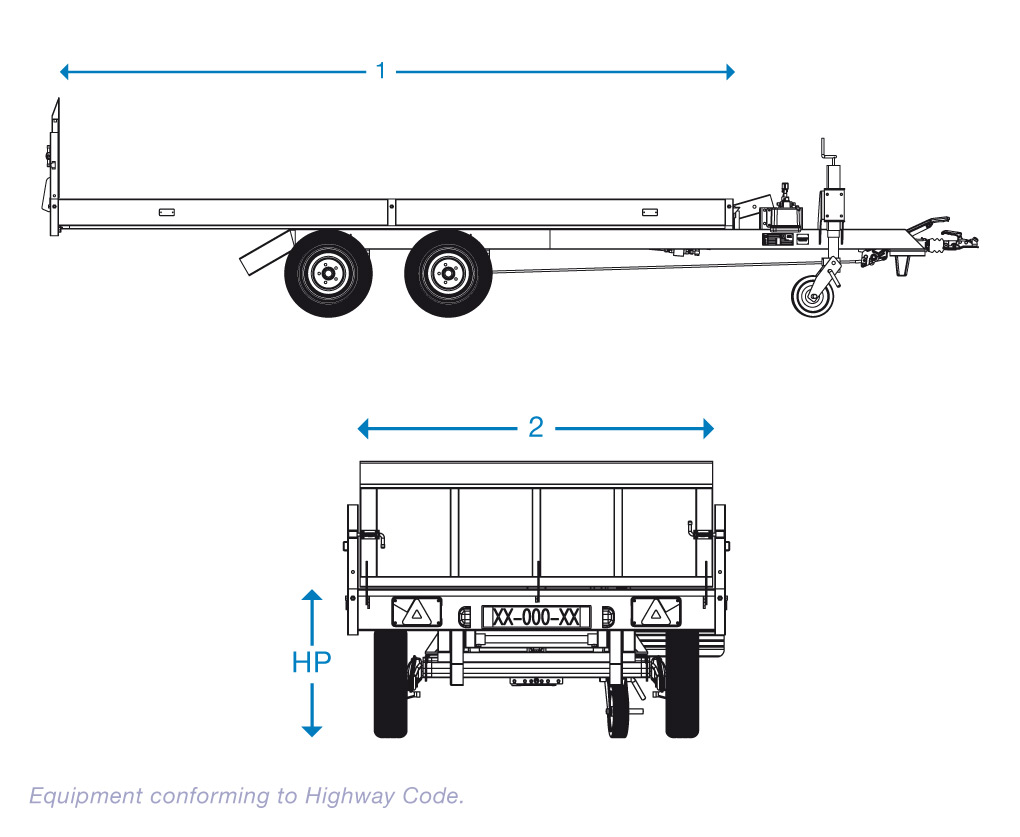

  • Schéma technique

    Characteristics

    • Welded metal chassis, hot-dip galvanized
    • Flat bed without sides.
    • Hydraulic flat top sliding
    • Spare wheel bracket
    • Rear ramp, height 0.60 m
    • Large section jockey wheel
    • Non-skid wooden floor.
    • Inertia brake with auto-reverse.
    • Type-approved recessed lighting.

    Options

    • Spare wheel.
    • Fixed front and folding sides rack, height 0.20 m.
    • Removable and folding sides, 0.40 m high
    • Cage sides, height 0.80 m.
    • Winch bracket.
    • Manual winch.
    • Winch cable guide (mandatory if sides).
    • Adjustable wheel chocks every 15 cm over 1 m.
    • Tie down rings (per pair).
    • Antitheft device.
    • OPTIMA extra-low adjustable parallelogram hitch.
      GVW 2000/2500 kg / MIN 300 mm / MAX 830 mm
      GVW 3200 kg / MIN 300 mm / MAX 820 mm
