Plateau coulissant PRR
PRR
Zoom
Zoom
Zoom
The principle used is that all 4 wheels stay on the ground during sliding, whether the trailer is coupled or not.

The system also offers a very low ramp angle.

"> Zoom
Zoom
Made of expanded metal, height 0.60 m, allows easy loading of equipment.

"> Zoom

Sliding flat top

The PRR “green spaces” sliding flat top is particularly possible because of its low loading angle, ideal for every type of equipment, even with a small ground clearance. This sliding flat top is based on a double axle and we propose sizes and payloads adapted to every type of use.

As a standard fixture, this sliding bed ensures the hydraulic sliding of the bed and comes with a rear ramp and extra low wheels. This “sliding flat top” range comes with many different options (fold-down and removable sides, cage sides, adjustable parallelogram hitching…).

The possible alternatives for this sliding top trailer, depending on your use, can include: large tipper trailer or very large tipper trailer or large tipper bed or also the very large tipper bed.

Designed and made in France
Informations Contact us

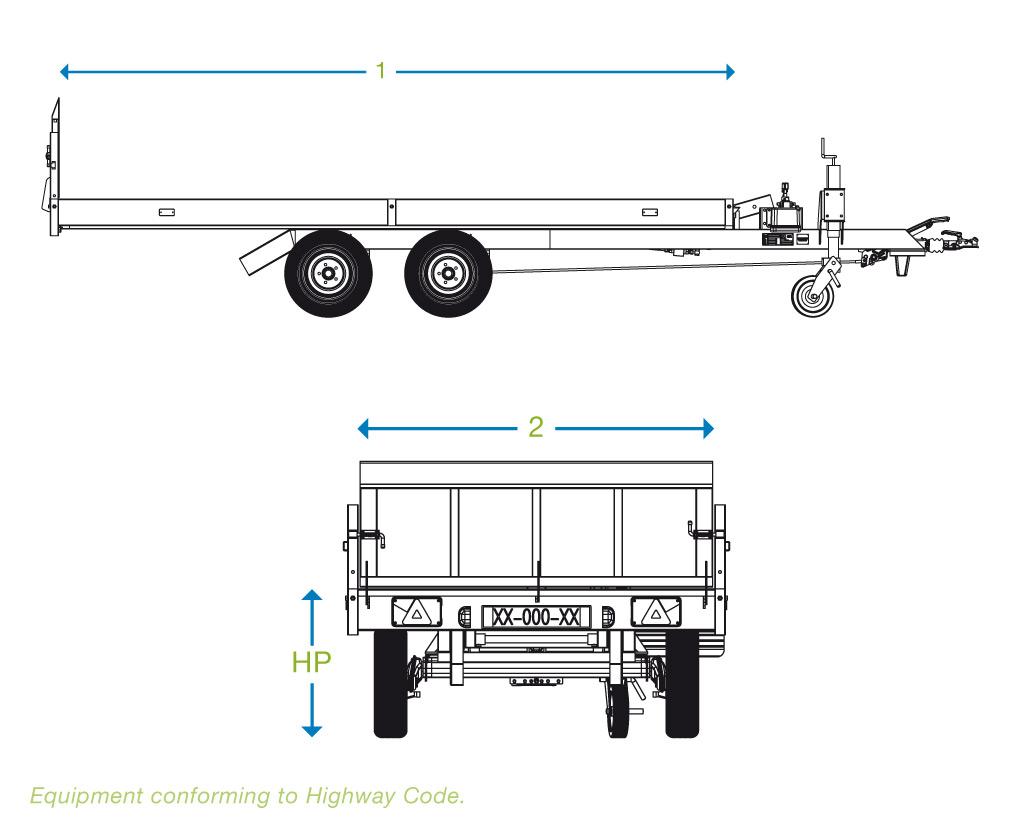

  • Schéma technique

    Characteristics

    • Welded metal chassis, hot-dip galvanized
    • Flat bed without sides.
    • Hydraulic flat top sliding
    • Spare wheel bracket
    • Rear ramp, height 0.60 m
    • Large section jockey wheel
    • Non-skid wooden floor.
    • Inertia brake with auto-reverse.
    • Type-approved recessed lighting.

    Options

    • Spare wheel.
    • Side and front rack, height 0.15 m.
    • Removable and folding sides, 0.40 m high
    • Cage sides, height 0.80 m.
    • Winch bracket.
    • Manual winch.
    • Winch cable guide (mandatory if sides).
    • Adjustable wheel chocks every 15 cm over 1 m.
    • Tie down rings (per pair).
    • Antitheft device.
    • OPTIMA extra-low adjustable parallelogram hitch.
      GVW 2000/2500 kg / MIN 300 mm / MAX 830 mm
      GVW 3200 kg / MIN 300 mm / MAX 820 mm
